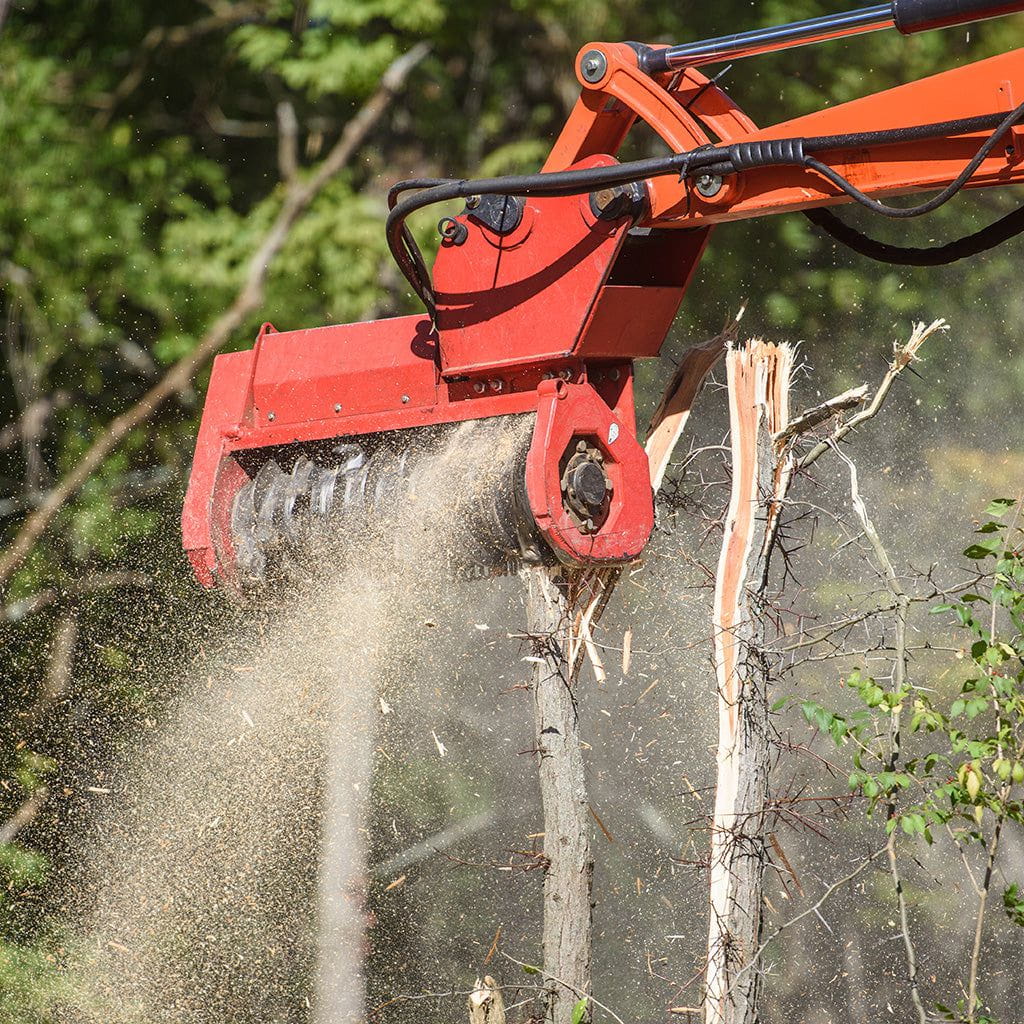

Fecon FMX36 Mulching Head
Excavator Class: 5-10 Ton
Add versatility to your business with Bull Hog mulching attachments for excavators.
The FMX Series offers 28″, 36″, and 50″ models with a split ring rotor design and knife tools for maximum performance. Designed for 3.5 – 10 ton excavators from 12 – 40 gpm. This lighter design also allows you to mount on backhoes and side arm booms while still offering Fecon’s durable, heavy-duty design.
| MODEL |
FMX26 |
FMX36 |
FMX50 |
| Excavator Class (TONS) |
3.5 - 8 |
5 - 10 |
5 - 10 |
| Working Width |
28" |
36" |
50" |
| Overall Width |
40" |
44" |
58" |
| Weight (lbs.) |
750 lbs |
850 lbs |
1,050 lbs |
| Flow Range (GPM) |
12 - 40 GPM |
12 - 40 GPM |
12 - 40 GPM |
| Flow Range (LPH) |
45 - 151 |
45 - 151 |
45 - 151 |
| Number of Tools |
14 |
18 |
22 |
| Rotor Diameter |
15" |
15" |
15" |
| Rotor Speed (RPM) |
2,400 |
2,400 |
2,400 |
| Rotor Bearing Size (MM) |
ST65 |
ST65 |
ST65 |
| Motor |
1 x 45V |
1 x 45V |
1 x 45V |
